Alternative connection setups

1 Connect power and network

  1. Connect the power supply to the device (A)
    • Verify Power LED illuminates
  2. Connect the LAN port (B, ETH0) to the PC
    • Verify the PC receives IP in 172.16.0.x

  1. Identify the Wi-Fi antenna (it is available in the Dev Kit) and connect it to the Wi-Fi/BT antenna connector (D) of the device



2 Setup

  1. Go to: https://172.16.0.1/onboarding/index.html
  2. Log in with:
    • Username: onboarding
    • Password: S/N - see the product identification label

Note: the MAC ID ETH0 on the product identification label identifies your device on EC. Ensure it is readily available.



3 Connect Internet

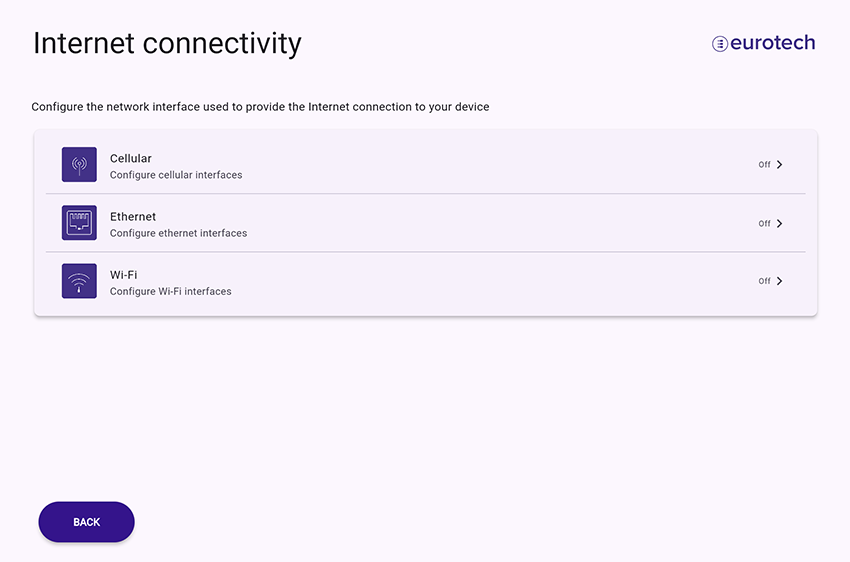

  1. Enter the Internet connectivity menu and enable Wi-Fi

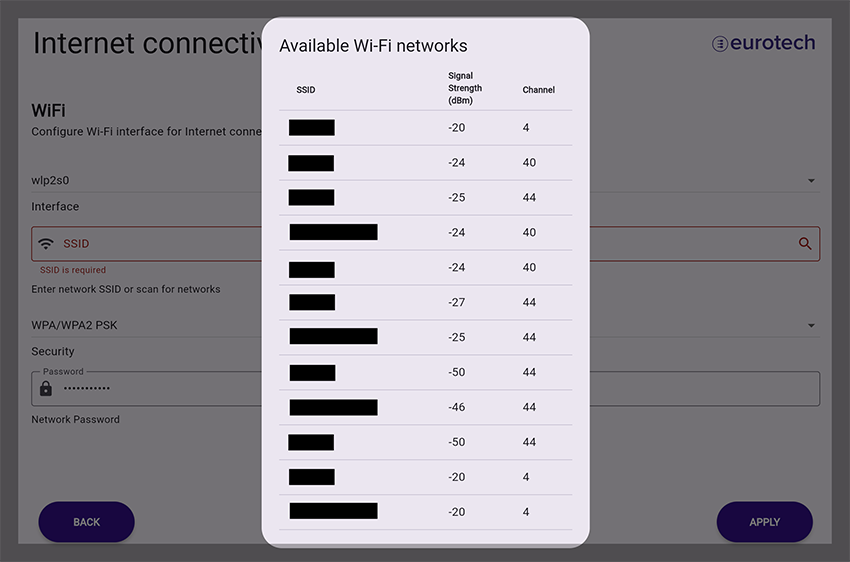

  1. Click on the magnifying glass icon to scan for available Wi-Fi networks

  1. Select the desired Wi-Fi network

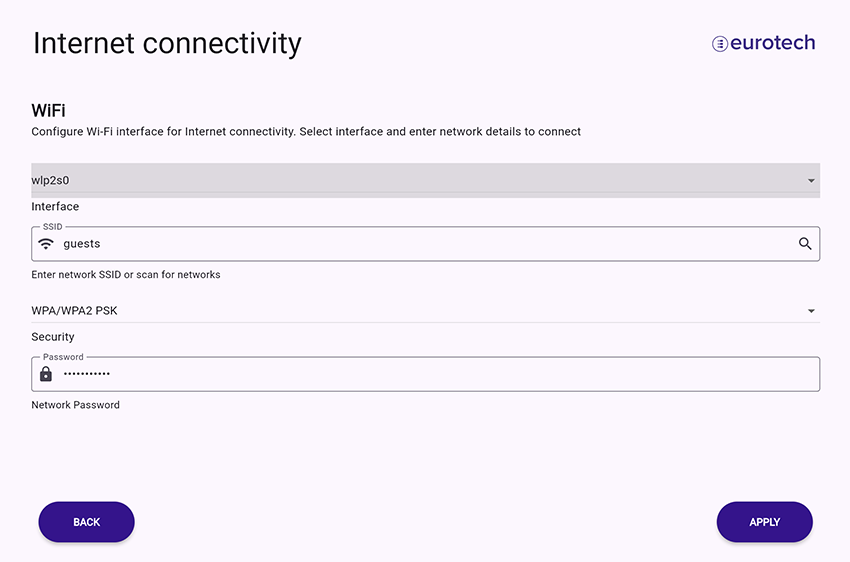

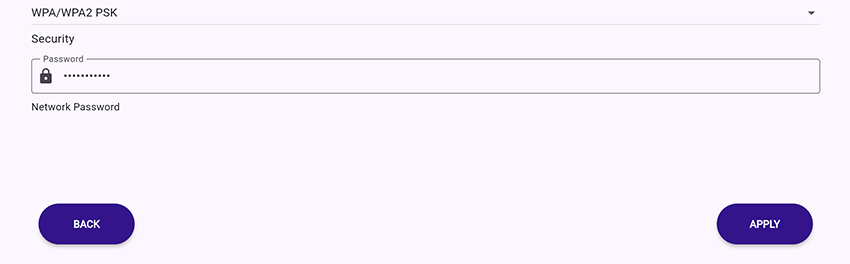

  1. Enter the Wi-Fi password

  1. Click Apply. The Wi-Fi will be displayed as "on" in the Internet connectivity menu




! 1 Unbox

3 Register "





Additional required items (user-provided)

  • MicroSIM card (3FF) format
    • Verify that the SIM card is active and can connect to the cellular network in your area

    • Verify that the SIM PIN (Personal Identification Number) is disabled

1 Connect power and network

Note: Always turn OFF the device before inserting / removing the SIM card. SIM card hot-swapping is not supported by the device.

  1. Verify that the device is OFF
  2. Insert the SIM
  3. Identify the cellular antennas (they are available in the Dev Kit) and connect them to the MAIN (E) and DIV (F) antenna connectors of the device

  1. Connect the power supply to the device (A)
    • Verify Power LED illuminates
  1. Connect the LAN port (B, ETH0) to the PC
    • Verify the PC receives IP in 172.16.0.x

2 Setup

  1. Go to: https://172.16.0.1/onboarding/index.html
  2. Log in with:
    • Username: onboarding
    • Password: S/N - see the product identification label

Note: the MAC ID ETH0 on the product identification label identifies your device on EC. Ensure it is readily available.

3 Connect Internet

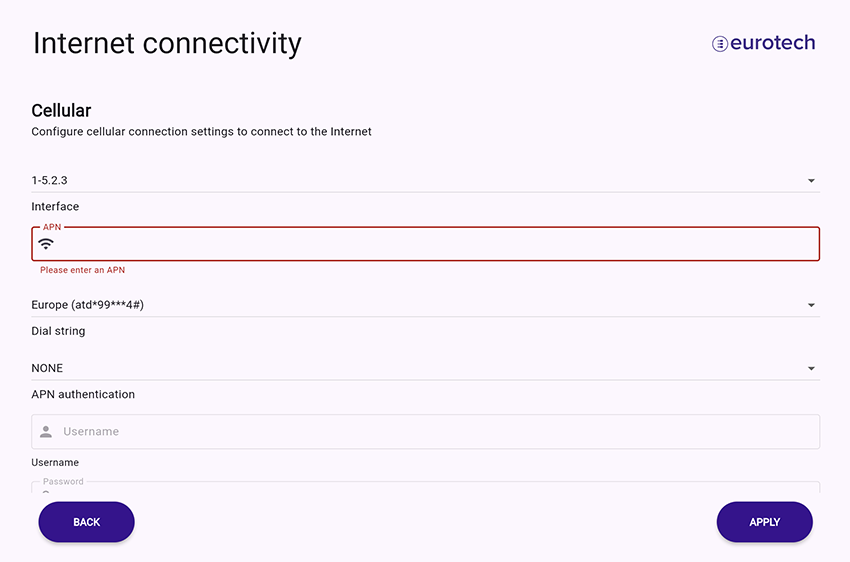

  1. Enter the Internet connectivity menu and enable Cellular

  1. Configure the cellular modem based on the configuration provided by your Mobile Network Operator:

    1. Set the APN, the Region, and the Operator

    2. Optional: Set the APN username and password

  1. Click Apply. Once the Cellular interface is connected, it will be displayed as "on" in the Internet connectivity menu.
